Category | 6U CPCI |
Dissipate heat | Compatible design |
PlatForm & Chipset | Skylake,CM236 |
Standard Configuration CPU | Intel® Core™ i7-6822EQ Processor |
C/T | 4C/8T |
Base / Turbo Frequency | 2.0GHz / 2.8GHz |
CPU TDP | 25W |
Memory | Onboard 16G |
SSD | Onboard 128G SATA SSD+M.2(SATA/NVME PCIeX4) |

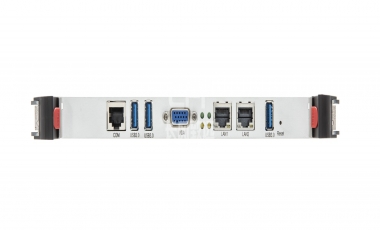

Front I/O | 3*USB3.0/2*GBE/1*VGA/1* RS232（RJ45） |
Remarks | Skylake DVI+EDP |
CPCI Connector | J1: 32-bit PCI local bus J2: 64-bit PCI local bus J3: PICMG2.16 2*GbE+RTM area/PCIe x16 Gen3 Support J4: 2*USB2.0/1*GbE/1*Audio/2*SATA/1*DVI/1*eDP J5: 1*DVI/1*VGA/4*USB2.0/2*USB3.0/2*SATA/ 4*RS232/422/485/1*GbE |
